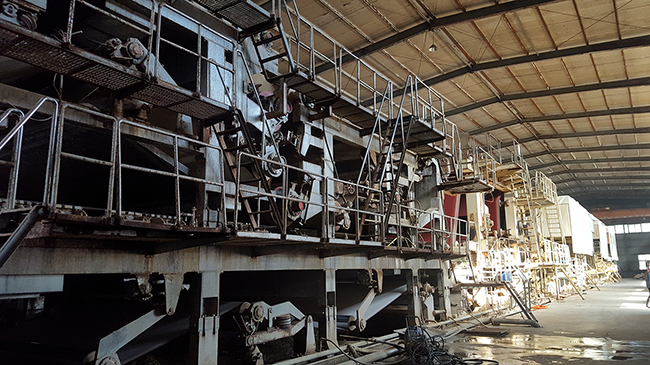

3600mm Three Wire Fourdrinier Paper Machine for Kraft/Liner paper
Date:
2020-01-01
Views: 343
3600mm Three Wire Fourdrinier Paper Machine for Kraft/Liner paper
Technical data:
Output: White top , test liner, fluting medium
Grammage: 80-200g/m2
Trim width: 3600mm
Design speed: 350m/min
Working speed:200-320m/min
Capacity: 150TPD
3600mm Three Wire Fourdrinier Paper Machine Design:
Wire Section: 3 wires,19m+14m+6.5m
Press Section: Suction pick up+Suction press ø850mm/800mm+ 2 nos of Jumbo press ø1350mm/1350mm
Drying Section: 20 sets Dryer cylinder with ø1800mm + Size press: ø950mm/950mm +10 sets Dryer cylinder with ø1800mm
Calender: ø600mm/600mm
QCS SCANNER

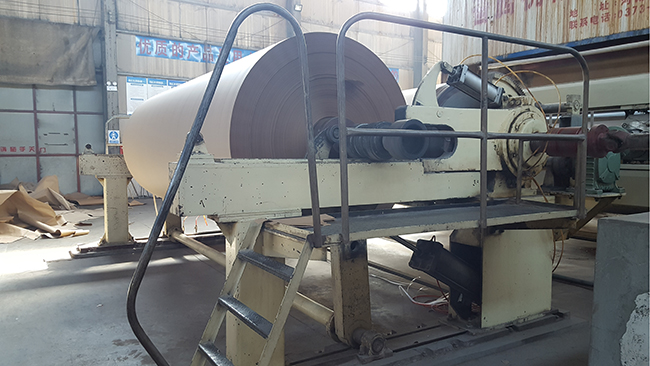

Pope Reel: ø 1100
Rewinder: Down-draw type with speed 1000m/min
Location:Yuncheng City,Shanxi Province,China
